Screwed

The traditional band clips application is completed with a wide range of mounting plates, which enable to fix the band clips to any surface. Mounting plates are made of self-extinguishing and halogen free plastic.

Available in following colours:

natural N (polyamide 6) - for indoor use,
black UV (modified polyamide 6 - of higher resistance to UV radiation) for outdoor use.

Most important features:

free of halogens and of phosphorus and cadmium compounds,
self-extinguishing,
various mounting possibilities (adhesive, pressed, hammered, screwed).

PMP Screwed mounting plates

mounted by means of a screw to a wall or a construction,

Screw the PMP plate to a wall or a construction. Next insert a band clip through the holes of the plate and clamp the band with the cable. Depending on the type of plate which is used, bands of 9,0 mm can be applied.

Print

Types of products

Cat. No.	Name / symbol	Band application	A	B	C	D	E	F	EAN barcode	Packaging
25.290	PMS-19-19-100	2,4 - 3,2	19,0	19,0	6,5	4,1	4,7		5905548281018
25.299	PMS-19-19-UV-100	2,4 - 3,2	19,0	19,0	6,5	4,1	4,7		5905548281025
25.225	PMS-25-25-100	2,4 - 4,5	25,0	25,0	7,4	5,8	5,0		5905548281032
25.252	PMS-25-25-UV-100	2,4 - 4,5	25,0	25,0	7,4	5,8	5,0		5905548281049
25.240	PMW-8-45	2,4 - 9,5	36,0	6,6	13,5	11,0	9,6	2,8	5905548281056
25.245	PMW-8-45-UV	2,4 - 9,5	36,0	6,6	13,5	11,0	9,6	2,8	5905548281063
25.230	PMP-03-3-100	2,4 - 2,6	13,8	8,5	3,0	6,3	3,3	6,0	5905548281070
25.233	PMP-03-3-UV-100	2,4 - 2,6	13,8	8,5	3,0	6,3	3,3	6,0	5905548281087
25.250	PMP-05-4-100	2,4 - 4,8	18,5	13,0	5,0	9,0	4,5	8,3	5905548281094
25.254	PMP-05-4-UV-100	2,4 - 4,8	18,5	13,0	5,0	9,0	4,5	8,3	5905548281100
25.200	PMP-10-5-100	2,4 - 9,0	26,5	16,0	10,0	11,0	5,3	10,6	5905548281117
25.205	PMP-10-5-UV-100	2,4 - 9,0	26,5	16,0	10,0	11,0	5,3	10,6	5905548281124

Specifications

Technical data
Colour	Natural, black UV
Material	Polyamide 6, polyamide 6 modified PE foam tape / rubber

TYPES OF PRODUCTS

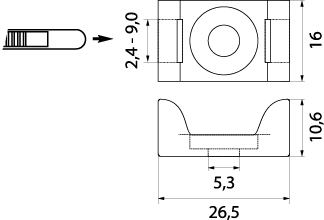

Screwed mainframe PMP-10-5-100
	Catalogue number	Symbol
	25.200	PMP-10-5-100
	GTIN
	5905548281117

Screwed mainframe PMP-10-5-UV-100
	Catalogue number	Symbol
	25.205	PMP-10-5-UV-100
	GTIN
	5905548281124

Screwed mainframe PMP-03-3-100
	Catalogue number	Symbol
	25.230	PMP-03-3-100
	GTIN
	5905548281070

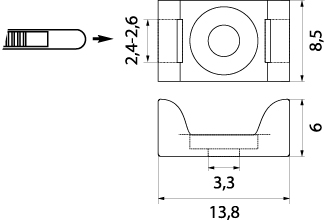

Screwed mainframe PMP-03-3-UV-100
	Catalogue number	Symbol
	25.233	PMP-03-3-UV-100
	GTIN
	5905548281087

Screwed mainframe PMP-05-4-100
	Catalogue number	Symbol
	25.250	PMP-05-4-100
	GTIN
	5905548281094

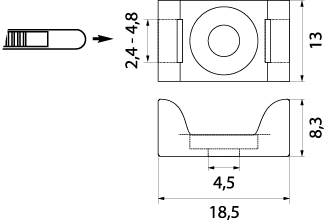

Screwed mainframe PMP-05-4-UV-100
	Catalogue number	Symbol
	25.254	PMP-05-4-UV-100
	GTIN
	5905548281100
