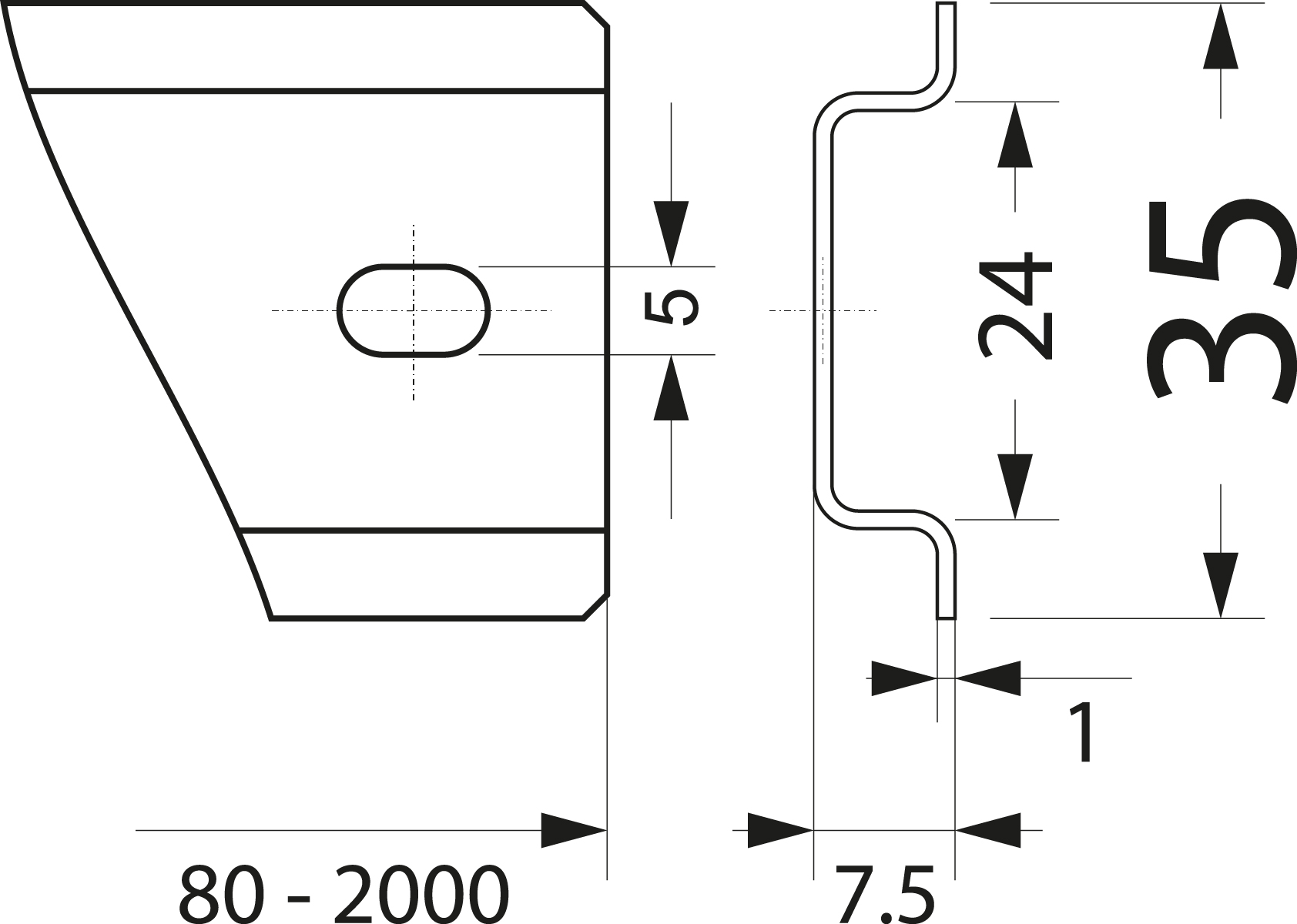

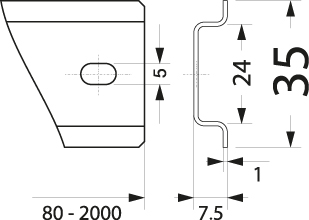

Brackets WTH

Allow for mounting of standard electrical devices equipped with a rail mounting element.

Types of products

Cat. No.	Symbol	Length [mm]	Mounting hole distance (mm)	EAN barcode
33.90	WTH 1	90	74	5905548286402
33.98	WTH 2	98	46	5905548286419
33.112	WTH 3	112	80/99	5905548286426
33.122	WTH 4	122	106	5905548286433
33.124	WTH 5	124	87	5905548286440
33.140	WTH 6	140	118	5905548286457
33.156	WTH 7	156	142	5905548286464
33.163	WTH 8	163	134	5905548286471
33.164	WTH 9	164	131/152	5905548286488
33.170	WTH 10	170	143/163	5905548286495
33.180	WTH 11	180	127	5905548286501
33.185	WTH 12	185	166	5905548286518

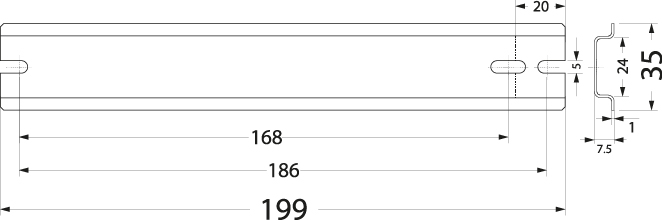

33.199	WTH 13	199	168/186	5905548286525

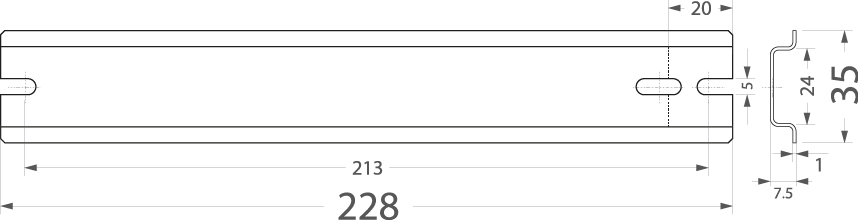

33.228	WTH 14	228	213	5905548286532
33.230	WTH 15	230	178	5905548286549

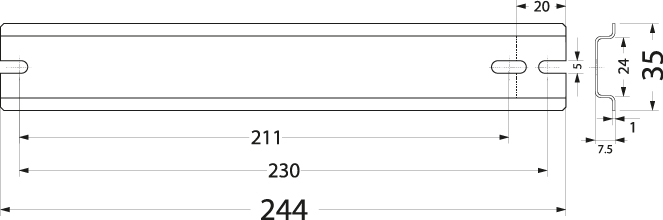

33.244	WTH 16	244	211/230	5905548286556

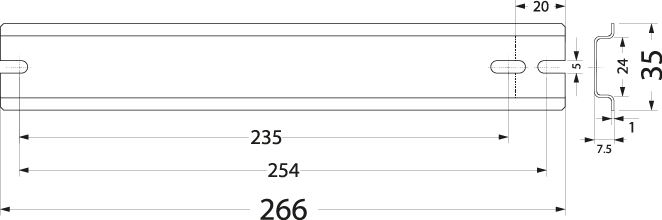

33.266	WTH 17	266	235/254	5905548286563
33.333	WTH 18	333	318	5905548286570
33.350	WTH 19	350	316/336	5905548286587
33.372	WTH 20	372	320/262	5905548286594

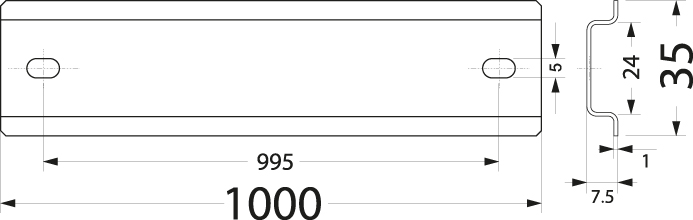

33.995	WTH 21	1000	995	5905548286600

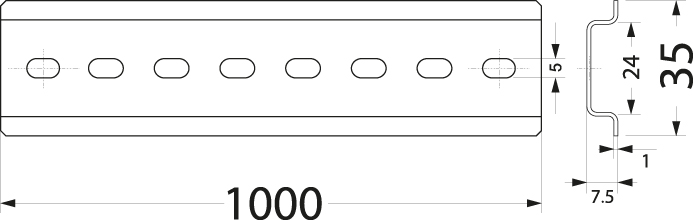

33.998	WTH 22	1000	perforated	5905548286617

TYPES OF PRODUCTS

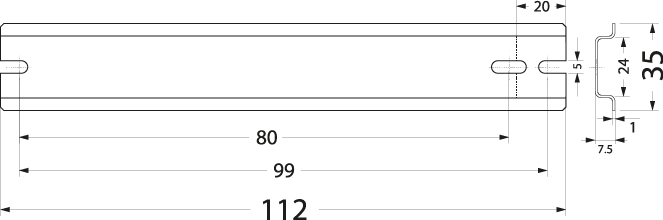

Bracket WTH 3
	Catalogue number	Symbol
	33.112	WTH 3
	EAN
	5905548286426

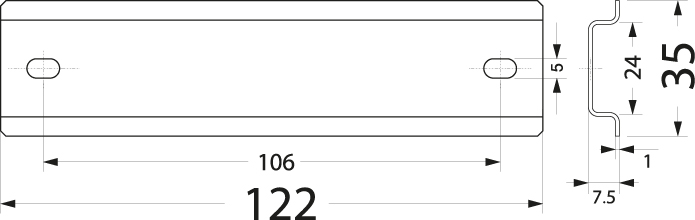

Bracket WTH 4
	Catalogue number	Symbol
	33.122	WTH 4
	EAN
	5905548286433

Bracket WTH 5
	Catalogue number	Symbol
	33.124	WTH 5
	EAN
	5905548286440

Bracket WTH 6
	Catalogue number	Symbol
	33.140	WTH 6
	EAN
	5905548286457

Bracket WTH 7
	Catalogue number	Symbol
	33.156	WTH 7
	EAN
	5905548286464

Bracket WTH 8
	Catalogue number	Symbol
	33.163	WTH 8
	EAN
	5905548286471

Bracket WTH 9
	Catalogue number	Symbol
	33.164	WTH 9
	EAN
	5905548286488

Bracket WTH 10
	Catalogue number	Symbol
	33.170	WTH 10
	EAN
	5905548286495
