- Splash-proof sockets IP66 - AQUA66
AQUA66 hermetic sockets have the IP66 protection degree and allow surface mounting. The casing is made of high-quality gray PC material, the transparent PC cover opens to 90°. The design and system of seals allows tight closing of the flap after inserting the plug. The 100x100 mm box is equipped with three threaded plugs with gaskets that can be replaced with 1x M25x1.5 and 2x M20x1.5 glands. AQUA66 is a single hermetic socket 2P + Z, 16A, 250V ~ (GHN, catalog number 55.66) and a single hermetic socket Schuko 2P + Z, 16A, 250V ~ (GHNS, catalog number 55.67). The sockets have solid screw terminals and the set includes mounting screws with anchors, screw plugs and mounting plates that allow you to install the socket without unscrewing the housing. The hermetic AQUA66 series will work well in industrial and home conditions.
TYPES OF PRODUCTS
-

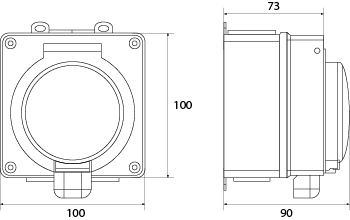

Hermetic Socket 2P+Z GHN IP66 - AQUA66, color:gray, 16A, 250V~ Catalogue number Symbol 55.66 GHN EAN 5901769019072
-
Hermetic Socket Schuko Schuko 2P+Z GHNS IP66 - AQUA66, color: gray, 16A, 250V~ Catalogue number Symbol 55.67 GHNS EAN 5901769019065
