Cable Joint MM11, Ø16-26mm, 200ml Resin, Insulation Tape, GELEBOX
| Symbol: | Catalogue number: | GTIN: |
| MM11 | 39.11 | 5905548281001 |
 |
1 set |
The GELEBOX Cable Joint is a cable joint filled with durable two-component polyurethane resin, designed for hermetic connections of various types of cables and wires with a voltage of up to 0.6/1kV. The joint is non-removable and sold without cable connectors. Resin joints of this type are used to connect multi-core cables with plastic insulation. The cable joint housing is a two-piece plastic cover filled with electro-insulating resin, which provides excellent sealing, as well as mechanical and electrical insulation of the connection. The resin and hardener are contained in a dual-chamber package, allowing convenient and safe mixing of components within a closed system by removing the partition in the package. The cable joints come equipped with a funnel for easy filling of the mold with resin.

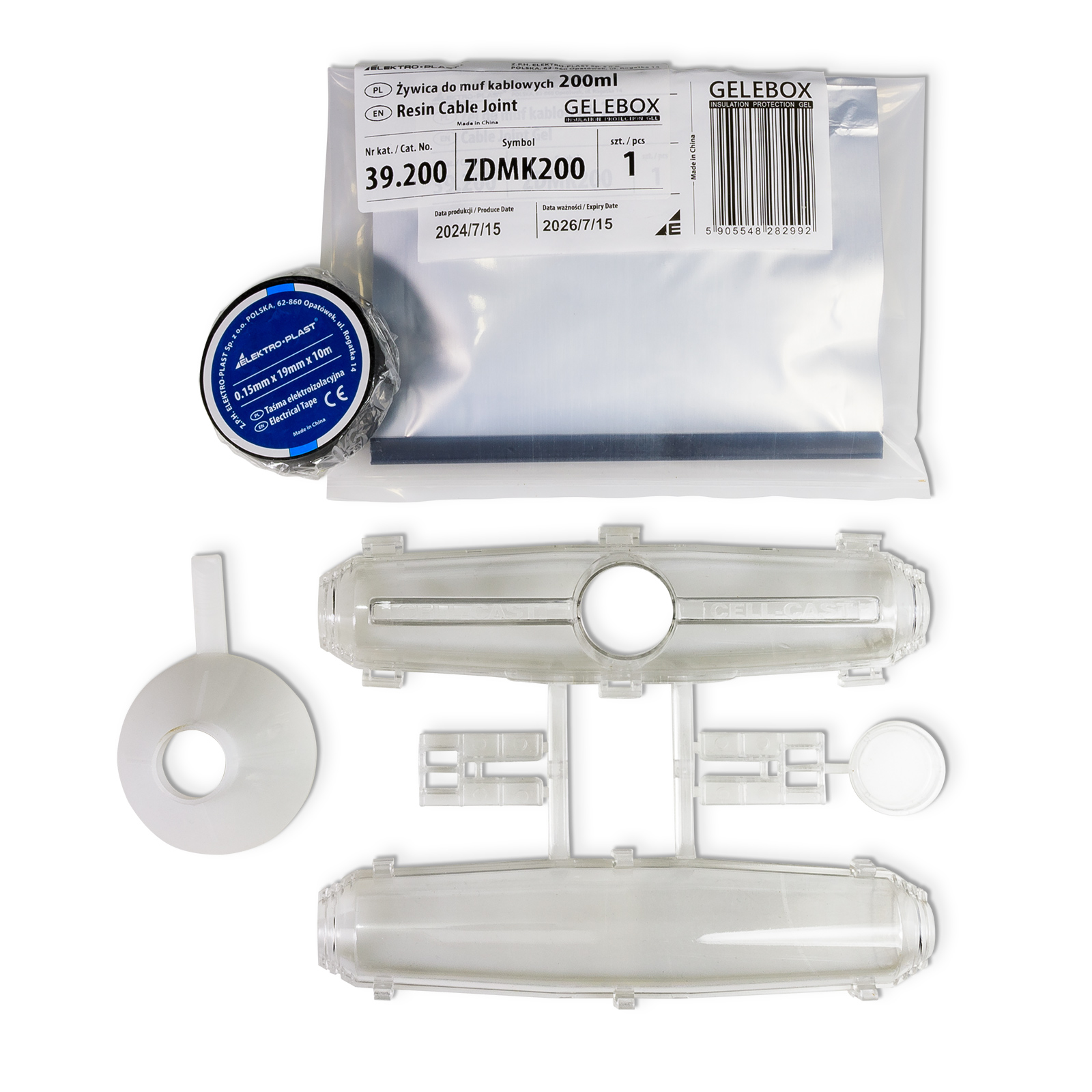

The set includes:
- Two-component polyurethane resin,
- Transparent, two-piece plastic mold,
- Sealing tape,
- Funnel,
- Installation manual (download).

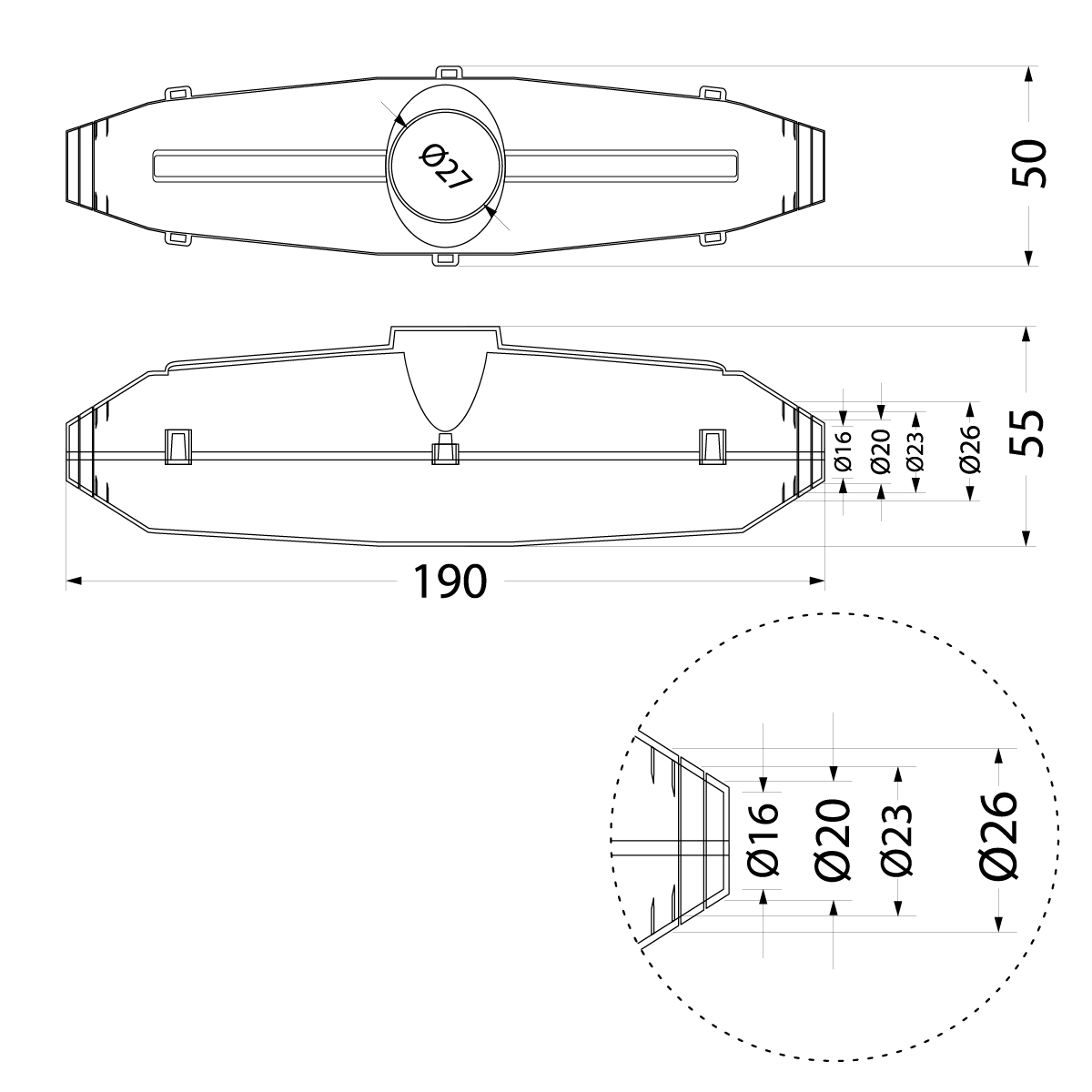

Rysunek Techniczny - Cable Joint MM11, Ø16-26mm, 200ml Resin, Insulation Tape, GELEBOX
