Current terminal strips S

One and three way busbars

Easy to mount, copper insulated busbars used to connect switches and ”S” type electrical devices.

Types of products

No.cat	Type	Way quantity	Current(A)	A mm	B mm	C mm	Way cross section mm2
45.102	S12 1F- 10	1	63	210	5	29	10
45.108	S18 1F- 10	1	63	320	5	29	10
45.110	S54 1F- 10	1	63	968	5	29	10
45.122	S12 3F- 10	3	63	215	16	31	10
45.188	S18 3F- 10	3	63	322	16	31	10
45.310	S54 3F- 10	3	63	965	16	31	10
45.302	S12 1F- 12	1	63	212	5	26	12
45.308	S18 1F- 12	1	63	320	5	26	12
45.112	S54 1F- 12	1	63	955	5	26	12
45.322	S12 3F- 12	3	63	212	15	31	12
45.388	S18 3F- 12	3	63	320	15	31	12
45.312	S54 3F- 12	3	63	955	15	31	12
45.121	S12 1F- 16	1	80	215	5	29	16
45.181	S18 1F- 16	1	80	320	5	26	16
45.116	S54 1F- 16	1	80	968	5	29	16
45.321	S12 3F- 16	3	80	215	17	31	16
45.318	S18 3F- 16	3	80	322	17	31	16
45.316	S54 3F- 16	3	80	965	17	31	16

Specifications

Technical data
Colour	grey
Materiał	PVC, miedź M11
insulation resistance	2,5 KV
Stability	od -20 C do + 50 C
Reference standard	PN-EN 60947-1 2010, PN-EN 60947-7-2

TYPES OF PRODUCTS

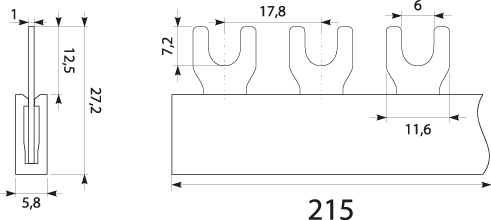

Szyna prądowa 1F S-121F-12
	Catalogue number	Symbol
	45.102	S-12 1F-10
	GTIN
	5901769010581

Current terminal strip 1F S-181F-10
	Catalogue number	Symbol
	45.108	1F S-181F-10
	GTIN
	5901769010598

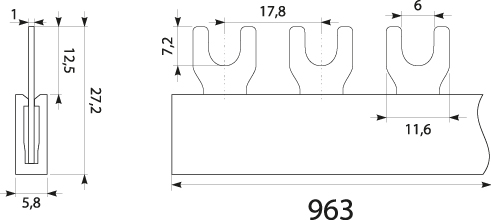

Current terminal strip 1F S-54 1F-10
	Catalogue number	Symbol
	45.110	1F S-54 1F-10
	GTIN
	5905548287317

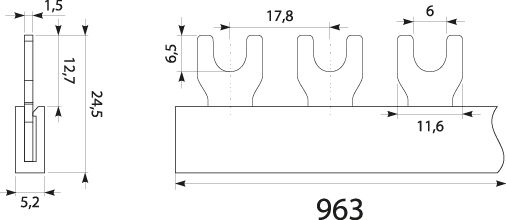

Current terminal strip 1F S-541F-12
	Catalogue number	Symbol
	45.112	1F S-541F-12
	GTIN
	5905548287331

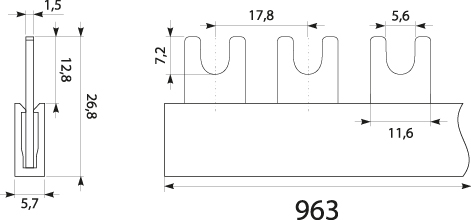

Current terminal strip 1F S-541F-16
	Catalogue number	Symbol
	45.116	1F S-541F-16
	GTIN
	5905548287355

Current terminal strip 1F S-121F-16
	Catalogue number	Symbol
	45.121	1F S-121F-16
	GTIN
	5901769010666

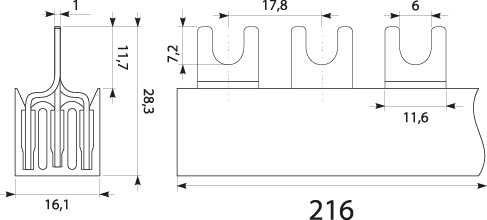

Current terminal 3F S-123F-10
	Catalogue number	Symbol
	45.122	3F S-123F-10
	GTIN
	5901769010604

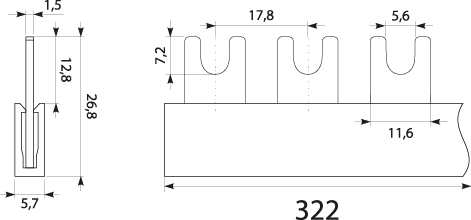

Current terminal strip 1F S-181F-16
	Catalogue number	Symbol
	45.181	1F S-181F-16
	GTIN
	5901769010673

Current terminal 3F S-18 3F-10
	Catalogue number	Symbol
	45.188	3F S-183F-10
	GTIN
	5901769010611

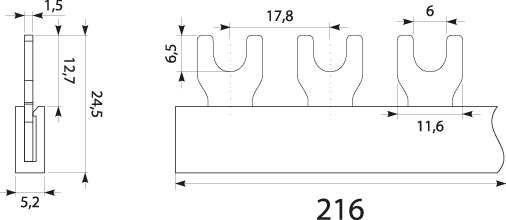

Current terminal strip 1F S-121F-12
	Catalogue number	Symbol
	45.302	1F S-121F-12
	GTIN
	5901769010628

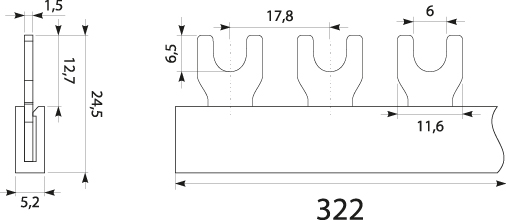

Current terminal strip 1F S-181F-12
	Catalogue number	Symbol
	45.308	1F S-181F-12
	GTIN
	5901769010635

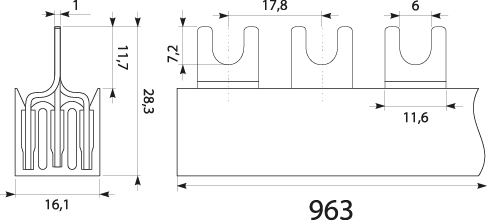

Current terminal strip 3F S-543F-10
	Catalogue number	Symbol
	45.310	3F S-543F-10
	GTIN
	5905548287324

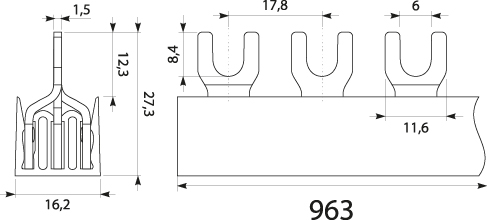

Current terminal strip 3F S-543F-12
	Catalogue number	Symbol
	45.312	3F S-543F-12
	GTIN
	5905548287348

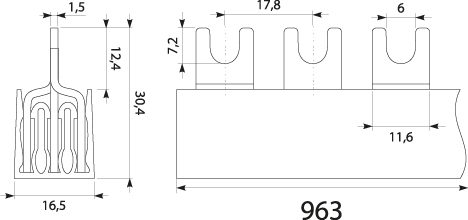

Current terminal strip 3F S-543F-16
	Catalogue number	Symbol
	45.316	3F S-543F-16
	GTIN
	5905548287362

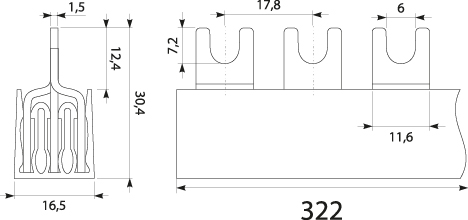

Current terminal strip 3F S-183F-16
	Catalogue number	Symbol
	45.318	3F S-183F-16
	GTIN
	5901769010697

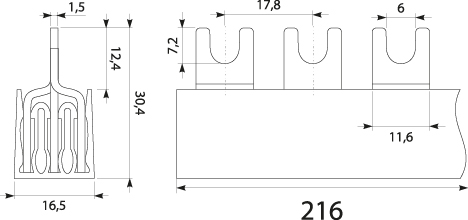

Current terminal strip 3F S-123F-16
	Catalogue number	Symbol
	45.321	3F S-123F-16
	GTIN
	5901769010680

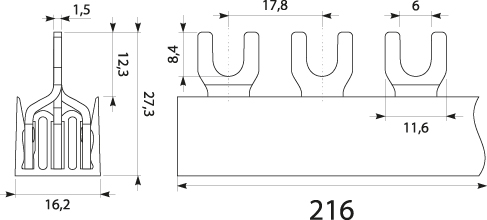

Current terminal strip 3F S-123F-12
	Catalogue number	Symbol
	45.322	3F S-123F-12
	GTIN
	5901769010642

Current terminal strip 3F S-183F-12
	Catalogue number	Symbol
	45.388	3F S-183F-12
	GTIN
	5901769010659

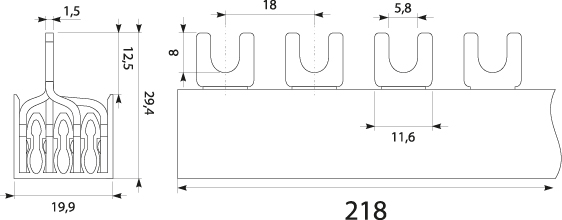

Current strip S12 4F - 10, 63A
	Catalogue number	Symbol
	45.412	S12 4F - 10
	GTIN
	5901769011373

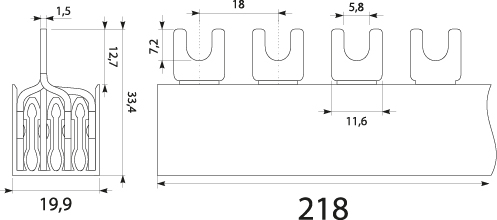

Current strip S12 4F - 16, 100A, kolor: szary
	Catalogue number	Symbol
	45.426	S12 4F - 16
	GTIN
	5901769011397

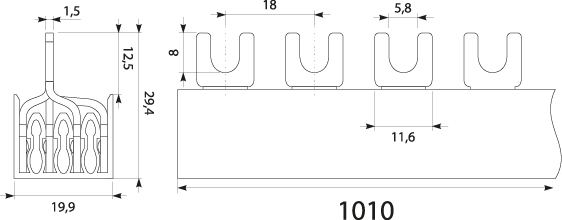

Current strip S56 4F - 10, 63A, kolor: szary
	Catalogue number	Symbol
	45.456	S56 4F - 10
	GTIN
	5901769011380

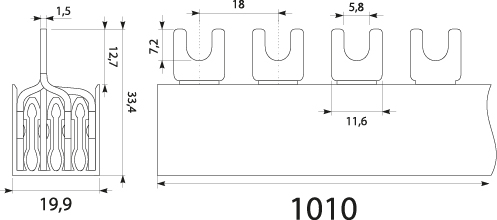

Current strip S56 4F - 16, 100A, kolor: szary
	Catalogue number	Symbol
	45.466	S56 4F - 16
	GTIN
	5901769011557

End Cap for current rail Z-10/16/3F, Way cross-section: 10/16
	Catalogue number	Symbol
	45.991	Z-10/16/3F
	GTIN
	5901769011564

End Cap for current rail Z-12/3F, Way cross-section: 12
	Catalogue number	Symbol
	45.993	Z-12/3F
	GTIN
	5901769011571

End Cap for current rail Z-10/1F, Way cross-section: 10
	Catalogue number	Symbol
	45.995	Z-10/1F
	GTIN
	5901769011588

End Cap for current rail Z-12/1F, Way cross-section: 12
	Catalogue number	Symbol
	45.997	Z-12/1F
	GTIN
	5901769011595

End Cap for current rail Z-16/1F, Way cross-section: 16
	Catalogue number	Symbol
	45.999	Z-16/1F
	GTIN
	5901769011601
